T04-D324-F
| Output Function | NPN, NO |
|---|---|
| Mounting | Shielded |
| Operating Distance | 1.5 mm |
| Operating Voltage | 10 – 30 VDC |
| Material | Stainless Steel |
| Mounting | Flush Mount |

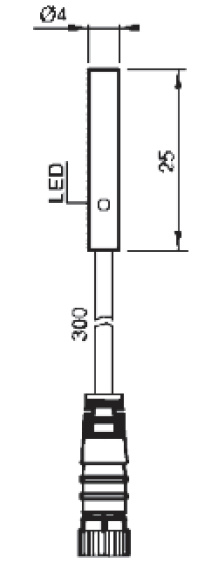

| Dimensions | M4 X 25mm |
| Voltage Drop | < 1.5V |
| Power Drain | < 8mA |
| Load Current (max) | 100mA |
| Repeatability | <= 1% |
| Connection | Connector – RP-522 |
| Protection | IP67 |
| Operating Temperature | -25° C to +75° C |
