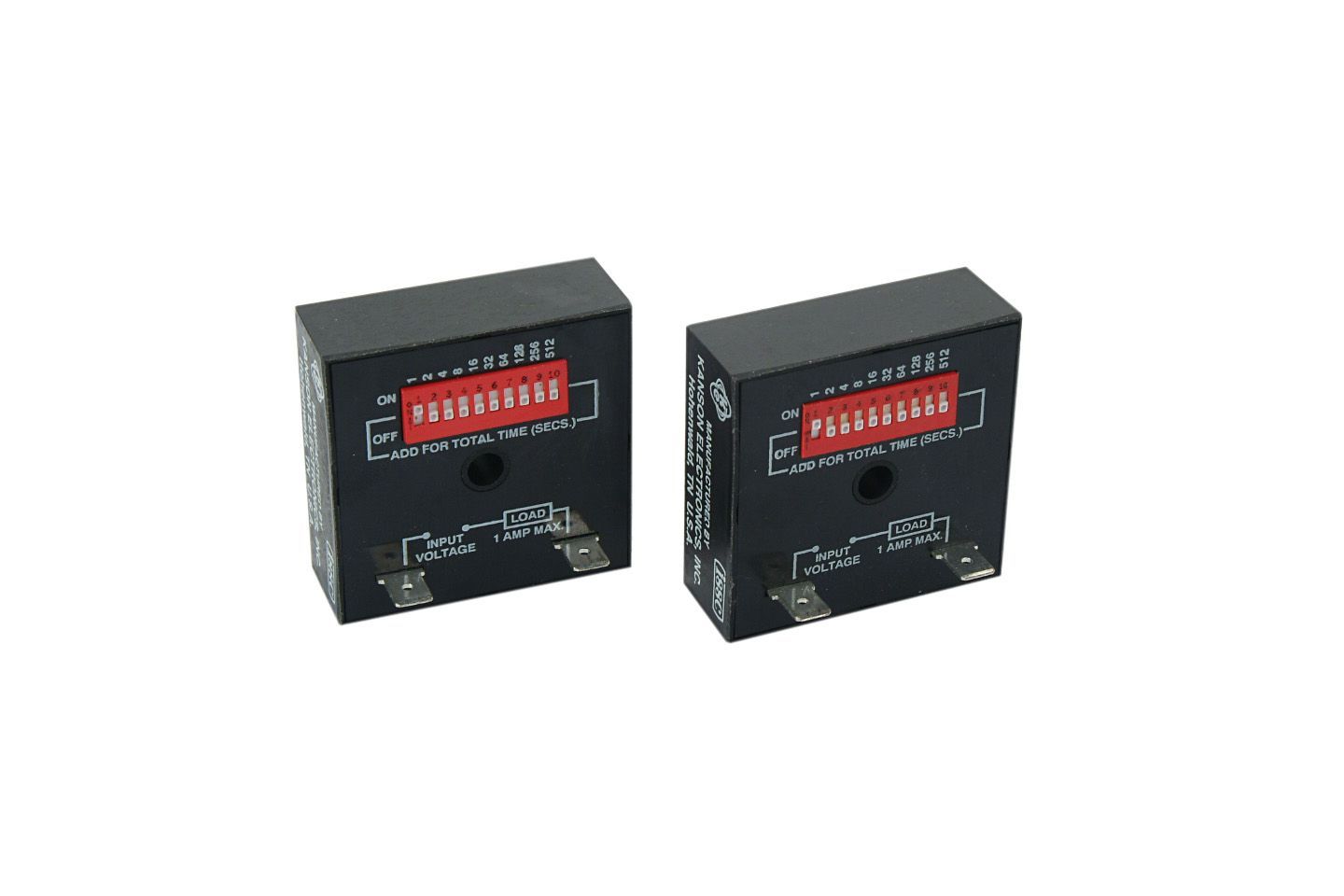

Model 2110 Block Mount

Php0.00
In stock
Product Details

  • On Delay

The Kanson 2110 timer is a solid state, simple two-wire installation and compact encapsulated timer with a programmable switch. Two power supply ranges cover operating voltages from 24 to 240 VAC/DC with a reliable 1 Amp solid state output.

Product Sheet
Specifications

Input

Voltage: 24 to 140 VAC/DC or 100 to 240 VAC/DC

Frequency: 50/60 Hz or DC

Tolerance (voltage): ± 10% of nominal

Power Consumption: 1 VA Maximum

Transient Protection: Protected


Output

Type: Solid State N.O.

Rating: 1A @ 240AC/DC max (10A 1 cycle surge)


Timing

Timing Function: On Delay

Repeat Accuracy: ≤ 0.5%

Reset Time: ≤ 50 msec

Time Range: 0.1 to 10230 seconds in 3 ranges

Range Tolerance: ± 5%

Control: Power applied to input initiates timing cycle


Physical

Operating Temp:-40° to +80° C (-40° to +175° F)

Timing Variation vs. Temp: ± 5% maximum

Mounting: Block Mount

Termination: 0.250 inch male quick connect terminals

Housing: Plastic

Wiring

Dimensions


Ordering Data
