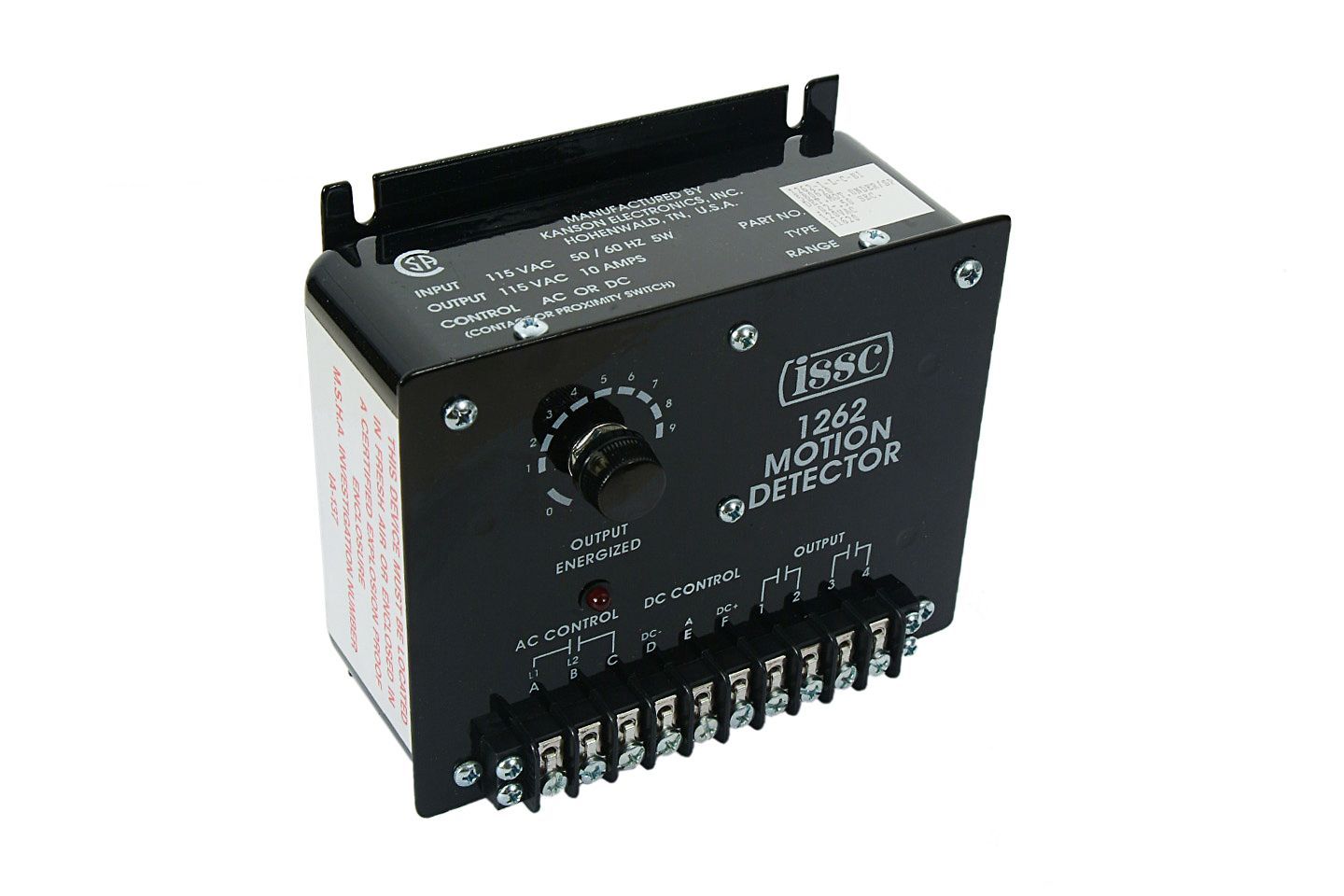

Model 1262 Base Mount
- On Delay
The 1262 can be supplied with an initial start time delay which energizes the output for the time specified when the power is applied to the unit.
Specifications
Input
Voltage: 120VAC
Frequency: 50/60 Hz
Tolerance (voltage): ± 10% of nominal
Power Consumption: 10 VA maximum
Transient Protection: Isolation transformer
Output
Type: Electromechanical relay
Rating: 10A - 1/6 HP at 120VAC, 1/3 HP at 240VAC
Timing
Timing Function: Motion Detector
Repeat Accuracy: ± 1% of setting
Indication: LED indicates unit timing and outputenergized
Timing Ramp:.02 sec minimum time - 1MΩ/sec0.06 sec minimum time - 100KΩ/sec0.5 sec minimum time - 10KΩ/sec
Time Range: 0.02 to 1000 secs in 13 ranges
Range Tolerance: ≤ 10% at max., ≤ 0% at min.
Control Terminals: A-B-C-D-E-F
Voltage Present at Control Terminals: A - C : Same as input voltage B - C : 120VAC pulseD - E - F : 12VDCD - E : 12VDC pulse
Physical
Operating Temp: 0° to 50° C (32° to 120° F)
Timing Variation vs. Temp: ± 5% maximum
Mounting: Base Mount
Termination: Terminal blocks on face of timer
Housing: Metal
