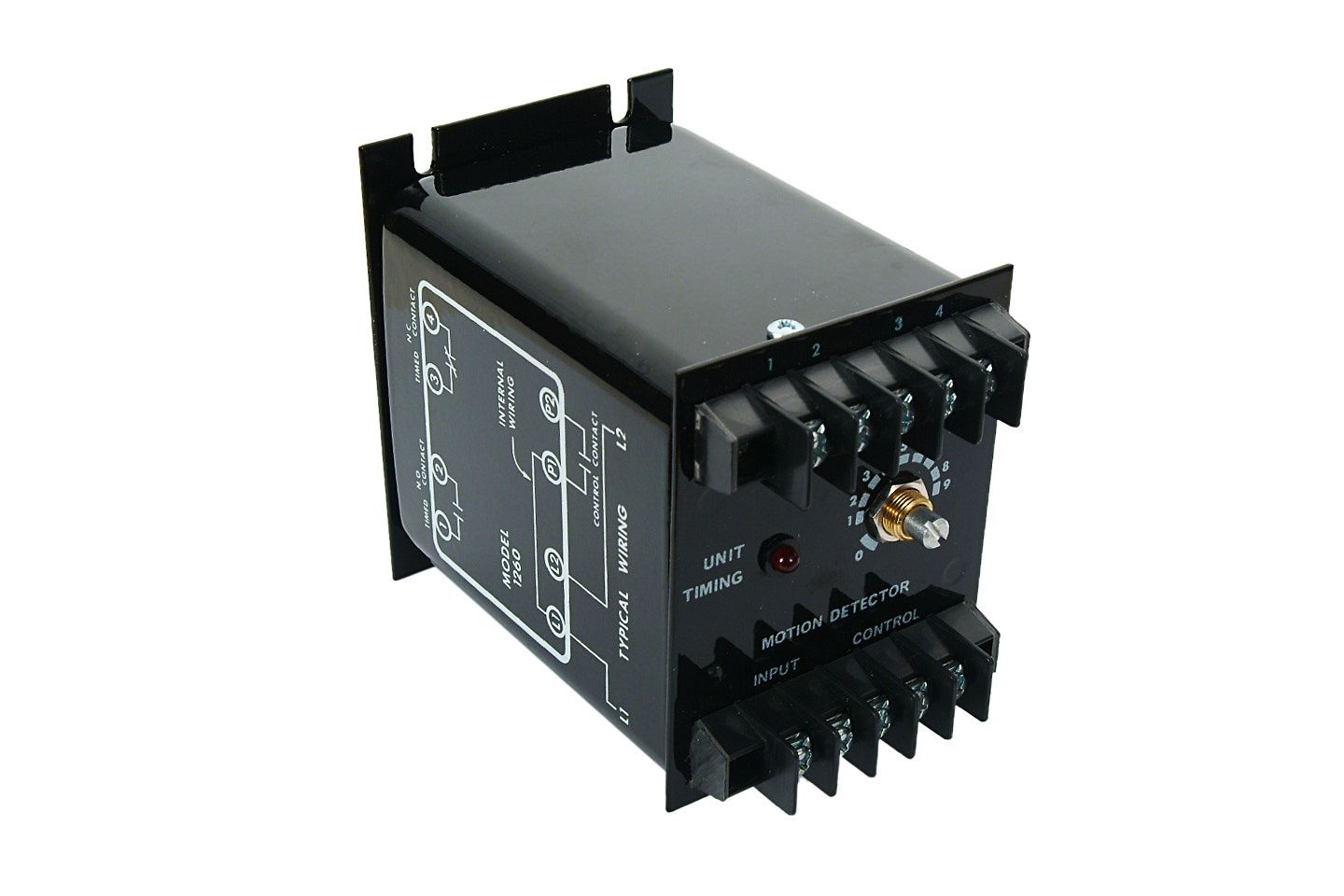

Model 1260 Base Mount
- Motion Detector
Specifications
Input
Voltage: 120VAC
Frequency: 50/60 Hz
Tolerance (voltage): ± 10% of nominal
Power Consumption: 10 VA maximum
Transient Protection: Isolation transformer
Output
Type: Electromechanical relay or Solid State
Rating: 1.5A @ 120 VAC (solid state)10A @ 240VAC maximum (electromechanical)
Timing
Timing Function: Motion Detector
Indication: LED indicates unit timing and output energized
Timing Ramp: 0.06 sec minimum time - 100kΩ//sec0.5 sec minimum time - 10kΩ//sec
Time Range: 0.06 to 500 secs in 12 ranges
Range Tolerance: ≤ 10% at max., ≤ 0% at min.
Control: Isolated contact closure or AC prox switch
Control Terminals: P1-P2-L2
Voltage Present at Control Terminals: P1-P2: Same as input voltageL2-P2: 120VAC pulse
Physical
Operating Temp:-32° to 71° C (-25° to 160° F)
Timing Variation vs. Temp: ± 3% maximum
Mounting: Base Mount
Termination: Terminal blocks on face of timer
Housing: Metal
