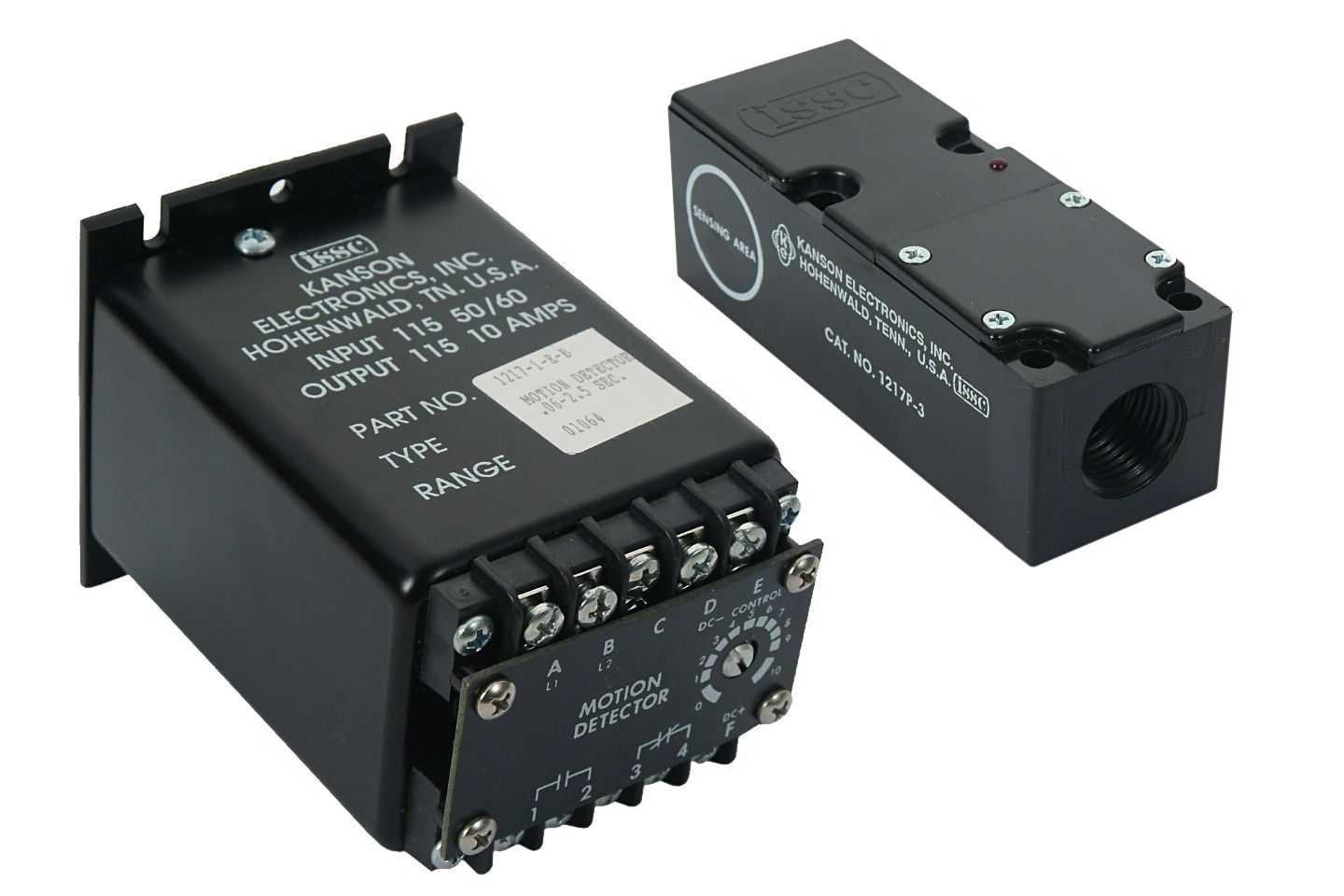

Model 1217 Base Mount

Input

Voltage: 120VAC or 24VAC/DC (1217C) - 10-20VDC (1217P)

Frequency: 50/60 Hz

Tolerance (voltage):+10% of nominal

Power Consumption: 10 VA maximum

Transient Protection: Transformer(120V), MOV(24V)

Output

Type: Electromechanical relay

Rating: 10A - 1/6 HP at 120VAC, 1/3 HP at 240VAC

Mechanical Life: 10,000,000 operations

Electrical Life: 500,000 operations

Timing Function: Underspeed motion detector/PLC watchdog

Timing Ramp: 0.06 sec to minimum - 10K ohm/sec0.5 sec minimum - 100K ohm/sec

Time Range: 0.06 to 100 secs in 7 ranges

Range Tolerance: ≤ 10% at max., ≤ 0% at min.

Control: Isolated contact closure (max. resist. 100 _)or DC proximity switch (ISSC 1217P)

Control Terminals: D-E-F

Voltage Present at Control Terminals: 24VDC minimum, 40VDC maximum

Physical

Operating Temp: 0°to 50°C (32°-120°F)

Timing Variation vs. Temp: ± 5% maximum

Mounting: Base Mount

Termination: Terminal blocks on face of timer

Housing: Metal
