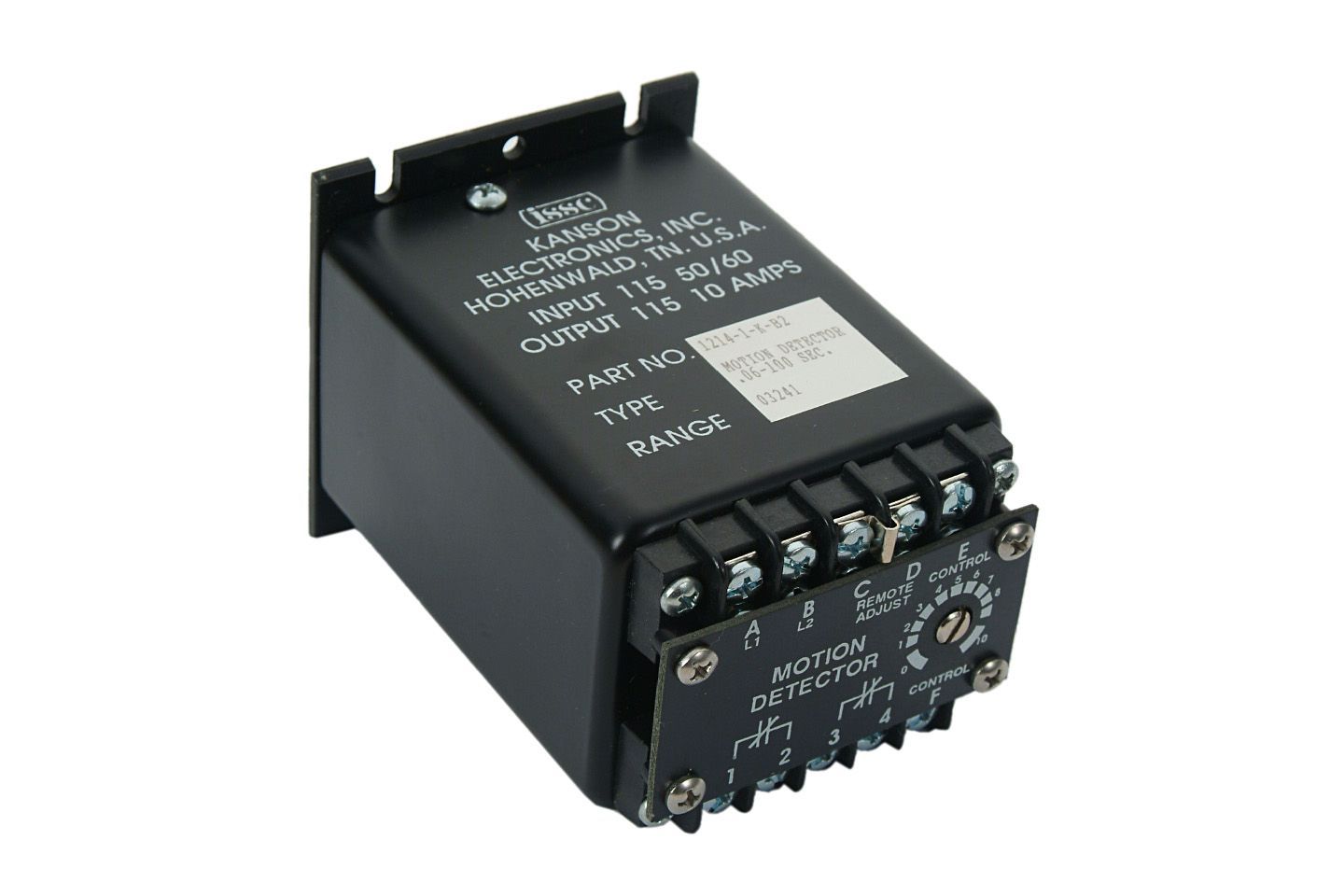

Model 1214 Base Mount

Input

Voltage: 120VAC, 24VAC/DC

Frequency: 50/60 Hz

Tolerance (voltage):+10% of nominal

Power Consumption: 10 VA maximum

Transient Protection: Isolation transformer(120VAC Only)

Output

Type: Electromechanical relay

Rating: 10A - 240VAC maximum

Timing Function: Motion detector

Timing Ramp: 100kΩ/sec

Time Range: 0.06 to 100 secs in 10 ranges

Range Tolerance: ≤ 10% at max., ≤ 0% at min.

Control: Isolated contact closure

Control Terminals: E-F

Voltage Present at Control Terminals: 24VDC minimum, 40VDC maximum

Physical

Operating Temp:-10° to 50° C (14° to 122° F)

Timing Variation vs. Temp: ± 5% maximum

Mounting: Base Mount

Termination: Terminal blocks on face of timer

Housing: Metal
