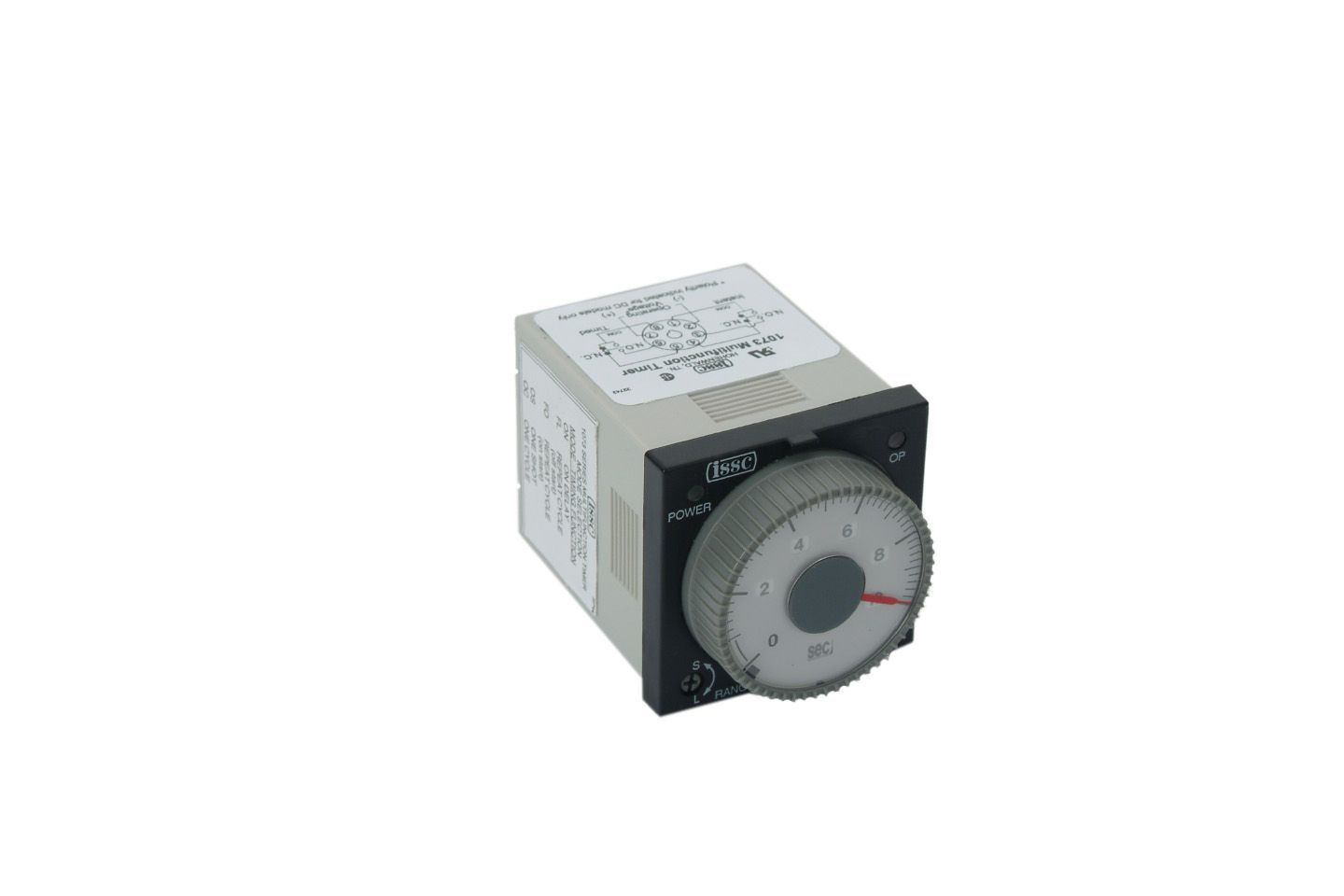

Model 1073 Plug-In or Panel Mount
- On Delay or fully programmable( Repeat cycle on OFF or ON
- One shot or One Cycle maintained interval)
The 1073 Timer includes a choice of on-delay only or 5 programmable functions, an auto-calibrating dial and an on-delay the only version with DPDT timed output.
CSA File No. LR92815
Specifications
Input
Voltage: 100-240VAC, 24VAC/DC, 12VDC
Frequency: 50/60 Hz or DC
Tolerance (voltage):-15% to +10% of nominal
Power Consumption: 10VA(100-240VAC), 2.5VA (24VAC), 2W(12/24VDC)
Transient Protection: MOV
Output
Type: Electromechanical relay
Rating: 5 A @ 240VAC maximum (resistive)
Mechanical Life: 20,000,000 operations
Electrical Life: 100,000 operations minimum (at full rated load)
Timing
Timing Function: On Delay or fully programmable( Repeat cycle on OFF or ON, One shot or One Cycle maintained interval)
Repeat Accuracy: ± 0.3% of setting
Reset Time: 100 msec minimum
Time Range: 0.1 secs to 500 hours in 16 ranges
Physical
Operating Temp:-10° to 50° C (14° to 122° F)
Timing Variation vs. Temp: ± 2% maximum
Mounting: Plug-In or Panel mount
Termination: 8 pin socket or screw terminals
Housing: Polycarbonate
Wiring
Dimensions
Ordering Data
