Model 1068 DIN-Panel Mount
- Repeat Cycle

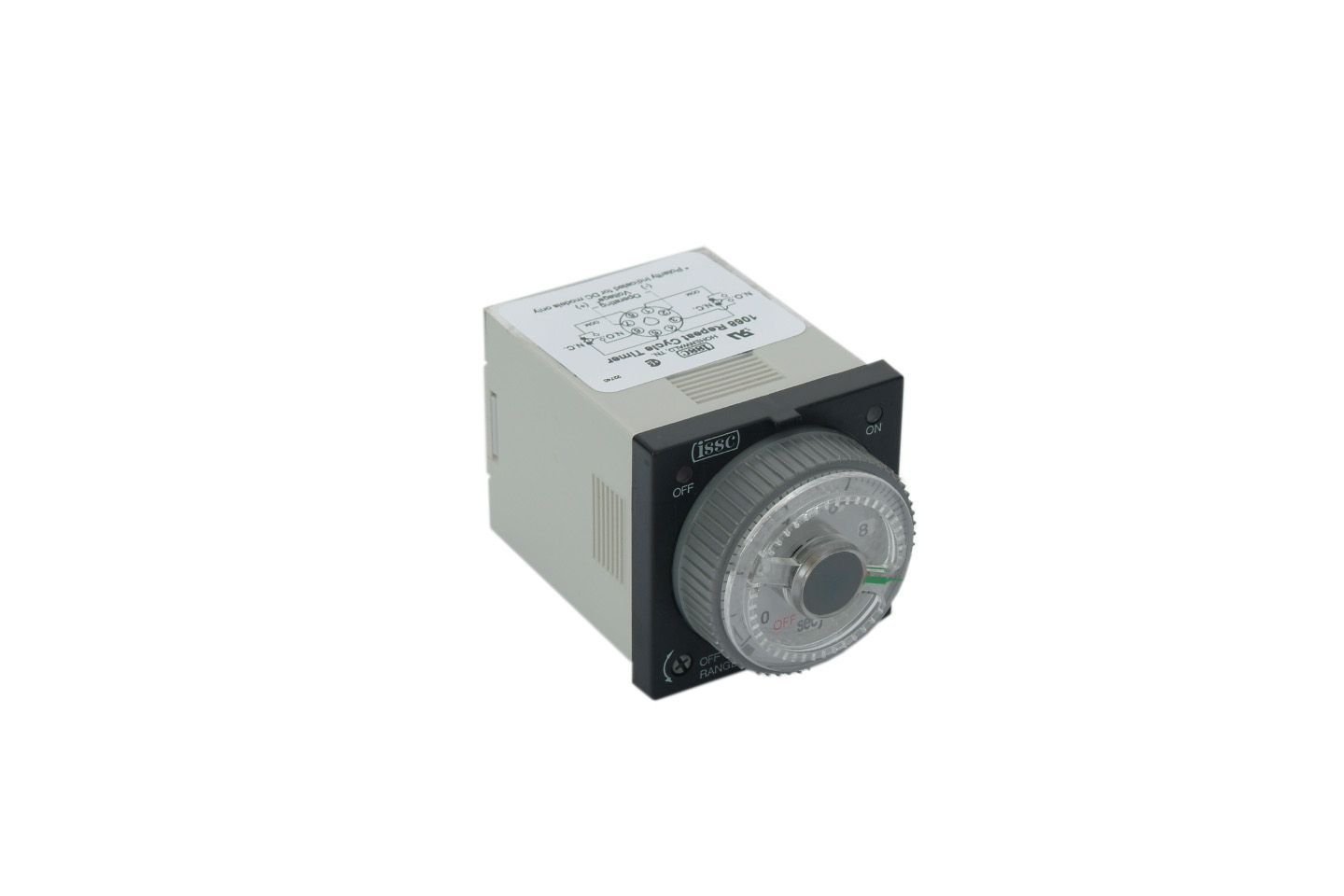

The Kanson 1068 interval timer features repeat cycle operation in a compact, plug-in unit, auto-calibrating dial and LED indicators. Now available with plug-in or screw terminal base. The 1068 features repeat cycle operation in a compact, plug-in unit, ON and OFF times are independently adjustable in 16 programmable time ranges from 0.1 seconds to 500 hours. An auto-calibrating dial provides a direct reading of time setting in every range. Operating voltage options are available from 12VDC to 240VAC. LED indicators for output on an output off complete the package. Now available with plug-in or screw terminal base.
CSA File No. LR92815
Specifications
Input
Voltage: 100-240VAC, 24VAC/DC, 12VDC
Frequency: 50/60 Hz or DC
Tolerance (voltage):-15% to +10% of nominal
Power Consumption: 10VA(100-240VAC), 2.5VA (24VAC), 2W(12/24VDC)
Transient Protection: MOV
Output
Type: Electromechanical relay
Rating: 5 A @ 240VAC maximum (resistive)
Mechanical Life: 20,000,000 operations
Electrical Life: 100,000 operations minimum (at full rated load)
Timing
Timing Function: repeat cycle
Repeat Accuracy: ± 0.3% of setting
Time Range: 0.1 secs to 500 hours in 16 ranges
Physical
Operating Temp:-10° to 50° C (14° to 122° F)
Timing Variation vs. Temp: ± 2% maximum
Mounting: DIN-Panel Mount
Termination: 8 pin socket or screw terminals
Housing: Polycarbonate
Wiring
Dimensions
Ordering Data
