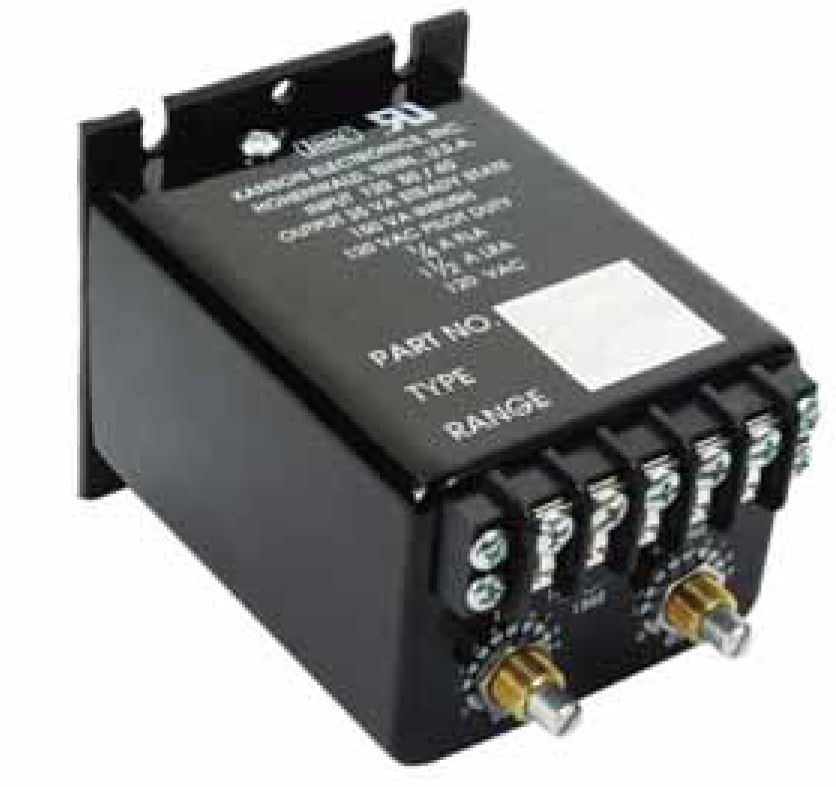

Model 1061 Base Mount

Input

Voltage: 120VAC

Frequency: 50/60 Hz

Tolerance (voltage): ± 15% of nominal

Power Consumption: 10 VA maximum

Transient Protection: Isolation transformer

Output

Type: Solid State

Rating: C output 35VA continuous, 150VA in rush @ 120VAC, C2A output 5A continuous, 12.5A in-rush @ 120VAC

Timing

Timing Function: repeat cycle (start ON or start OFF)

Indication: Optional incandescent light - ON when output energized

Timing Ramp: 0.06 sec min time - 100kΩ/sec, 0.5 sec min time - 10kΩ/sec

Time Range: 0.06 to 500 secs in 9 ranges

Range Tolerance: ≤ 10% at max., ≤ 0% at min.

Control: Isolated contact closure

Control Terminals: E-F

Voltage Present at Control Terminals: Same as input voltage , 24 VDC minimum, 40VDC maximum (OP7)

Physical

Operating Temp: 0° to 50° C (32° to 120° F)

Timing Variation vs. Temp: ± 5% maximum

Mounting: Base Mount

Termination: Terminal blocks on face of timer

Housing: Metal
