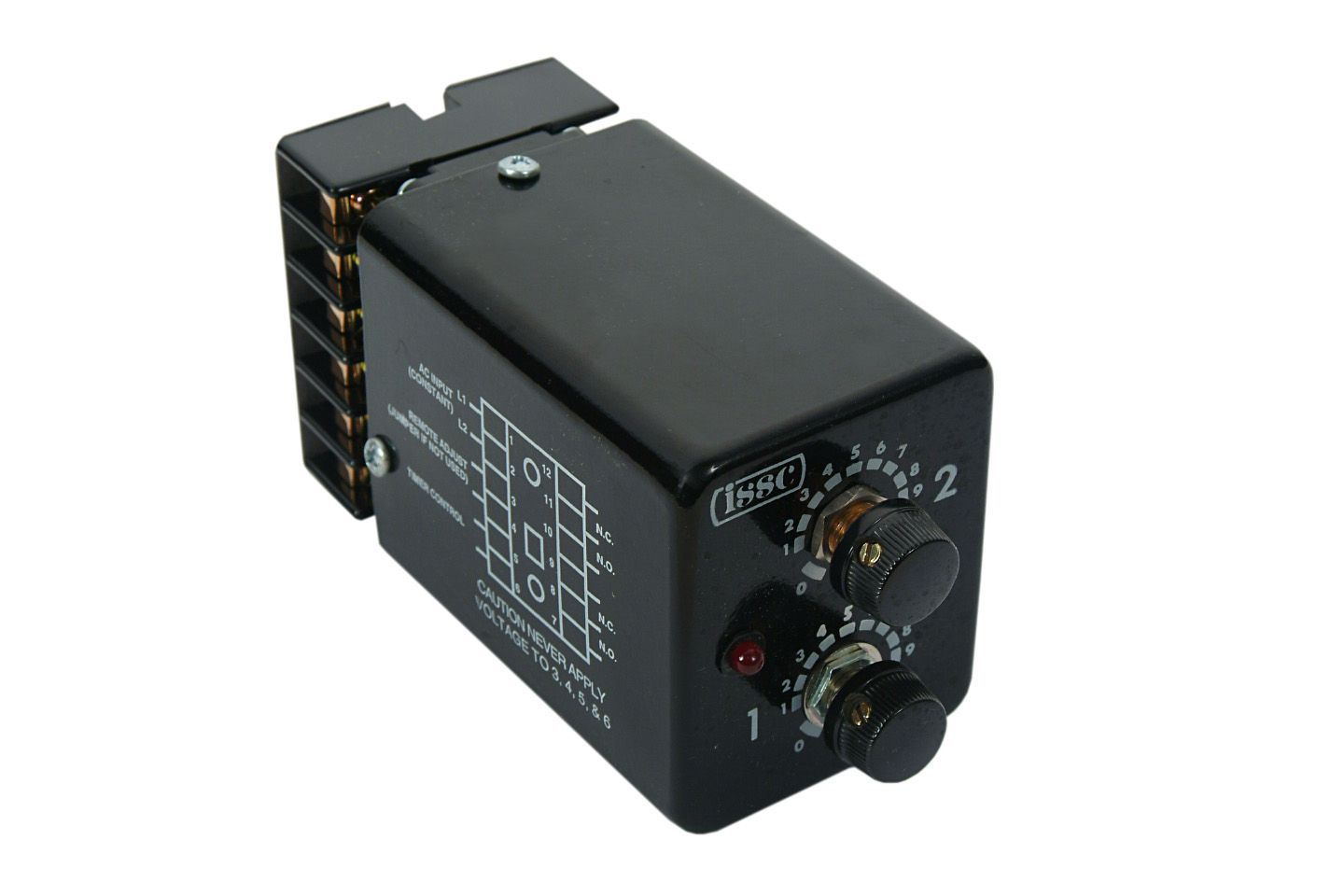

Model 1032 Plug-In

Input

Voltage: 120VAC, 24VAC

Frequency: 50/60 Hz

Tolerance (voltage): ± 15% of nominal

Power Consumption: 10 VA maximum

Transient Protection: Isolation transformer(120/240VAC Only)

Output

Type: Electromechanical relay

Rating: 10A - 1/6HP at 120VAC, 1/3HP at 240VAC

Mechanical Life: 10,000,000 operations

Electrical Life: 300,000 operations

Timing Function: On delay, Off delay, Pulsed interval, Maintained interval

Repeat Accuracy: ± 1% of setting

Reset Time: 50 msec minimum

Indication: LED - ON when output energized

Timing Ramp: 06sec minimum time - 100K ohm/sec.5sec minimum time - 10K ohm/sec

Time Range: 0.06 to 500 secs in 11 ranges

Range Tolerance: ≤ 10% at max., ≤ 0% at min.

Control: Isolated contact closure

Control Terminals: 5/6/2014

Voltage Present at Control Terminals: 24VDC minimum, 40VDC maximum

Physical

Operating Temp: 0° to 50° C (32° to 120° F)

Timing Variation vs. Temp: ± 5% maximum

Mounting: Plug-in

Termination: 12 pin socket

Housing: Metal
