Model 1025 Base Mount

Name: Model 1025 Base Mount
SKU: 00017
Availability: InStock

Store / Timers / Delay Timers

Php0.00

In stock

Product Details

On delay

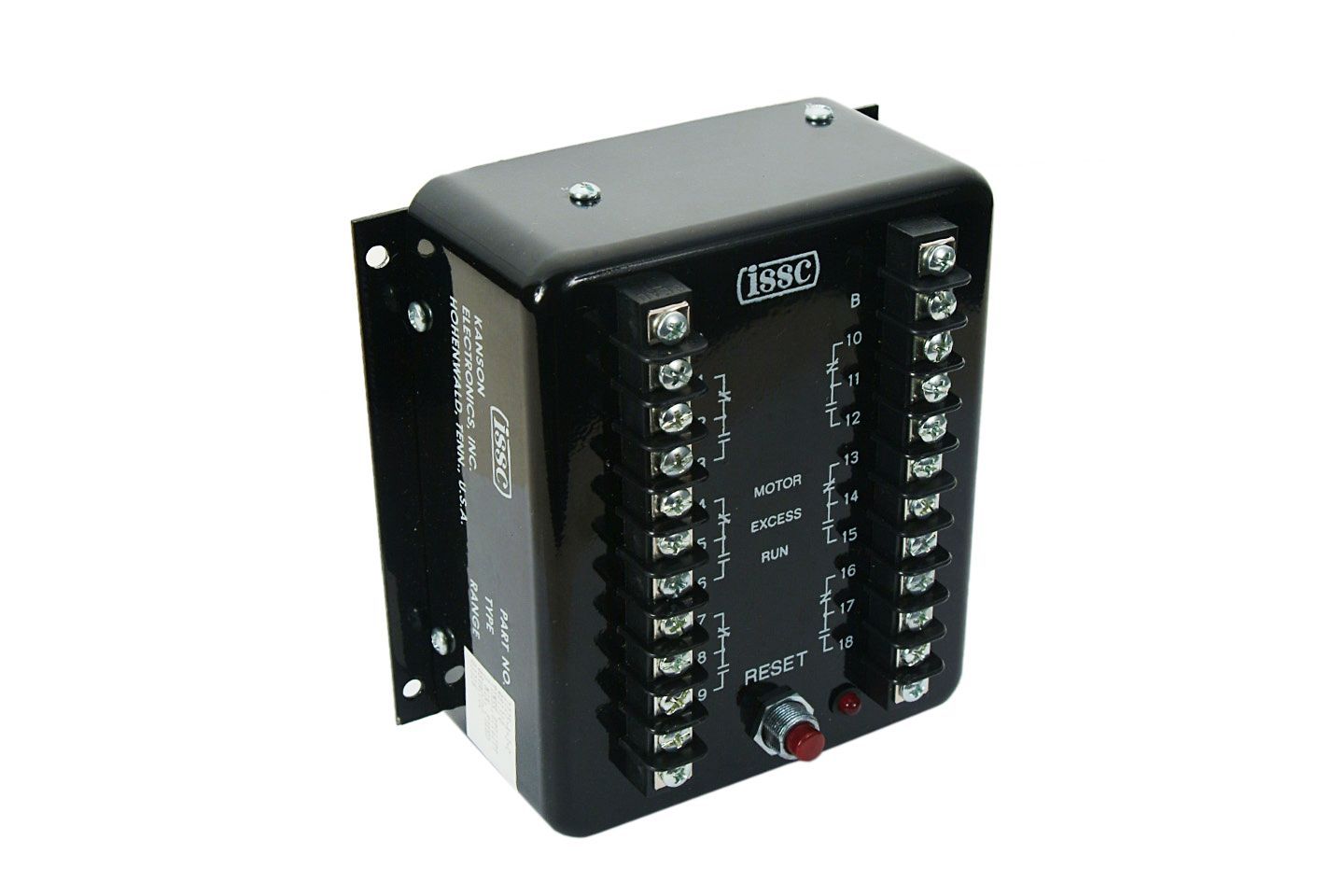

The 1025 is a special purpose on delay timer for electric motor over-run protection featuring 6 normally open and 6 normally closed sets of contacts, equipped with transient protection and housed in a metal enclosure for maximum noise immunity. The LED displays timed out condition and has a reset button.

Product Sheet

Specifications

Input

Voltage: 48V AC/DC, 120VAC/125VDC, 240VAC/250VDC

Frequency: 50/60 Hz or DC

Tolerance (voltage): ± 15% of nominal

Power Consumption: 16 W maximum

Transient Protection: MOV

Output

Type: Electromechanical relay

Rating: 7.5A maximum

Timing

Timing Function: On Delay

Repeat Accuracy: ± 1% of setting

Reset Time: 50 msec minimum

Time Range: 0.5 to 20 min.

Range Tolerance: ≤ 10% at max., ≤ 0% at min.

Physical

Operating Temp: 40° to 650° C (40° to 150° F)

Timing Variation vs. Temp: ± 5% maximum

Mounting: Base Mount

Termination: Terminal blocks on face of timer

Housing: Metal

Wiring

Dimensions

Ordering Data
