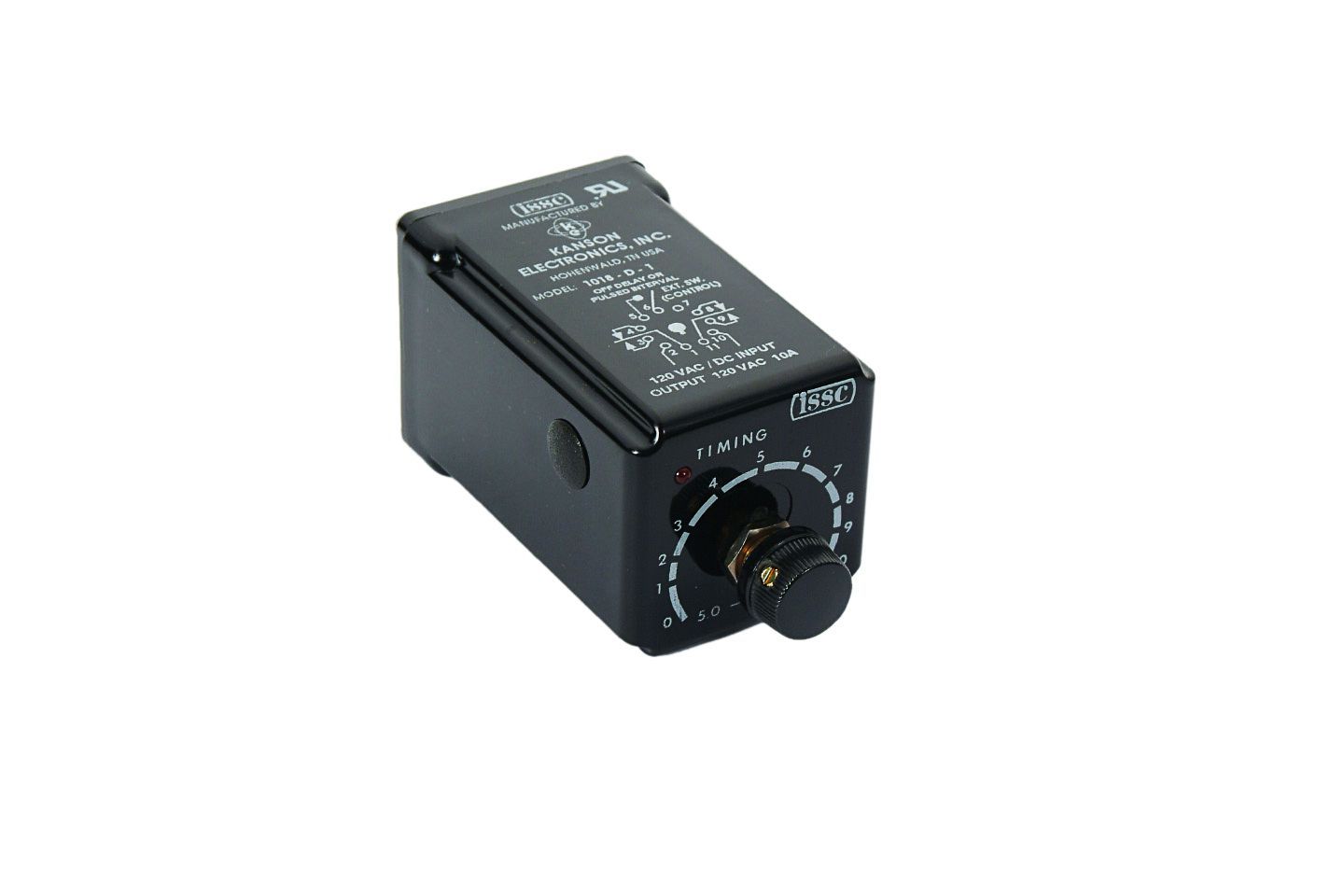

Model 1018 Plug-In

Input

Voltage: 120VAC/DC, 24VAC/DC

Frequency: 50/60 Hz or DC

Tolerance (voltage): ± 10% of nominal

Power Consumption: 3 VA maximum

Transient Protection: MOV

Output

Type: Electromechanical relay

Rating: 10A @ 240VAC maximum

Timing Function: Off delay, Pulsed interval, Maintained interval

Repeat Accuracy: ± 1% of setting or 8 msec, whichever is greater

Reset Time: 50 msec minimum- Types 2 & 4, 100 msec minimum - Type 5

Indication: LED - ON when timing

Timing Ramp: 0.06 sec minimum time - 1MΩ/sec, 0.5 sec minimum time - 100kΩ/sec, 5 sec minimum time - 10kΩ/sec

Time Range: 0.06 to 1000 secs in 10 ranges

Range Tolerance: ≤ 30% at maximum, ≤ 0% at minimum

Control: Isolated contact closure

Control Terminals: 5-6 (Types 2 and 4) 2-7(for option 13 - Type 5)

Voltage Present at Control Terminals: 70VDC (120VAC/DC - Types 2 and 4), 30VDC (24VAC - Types 2 and 4), 24VDC (24VDC - Types 2 and 4) Same as input voltage (Type 5) Shipped as an off delay. Remove jumper clip (see dimensions) to convert to pulsed interval

Physical

Operating Temp: 0° to 50° C (32° to 120° F)

Timing Variation vs. Temp: Greater of ≤ 5% maximum or 8 msec, whichever is greater (up to 500 secs)

Mounting: Plug-In

Termination: 8 or 11 pin socket

Housing: Plastic
