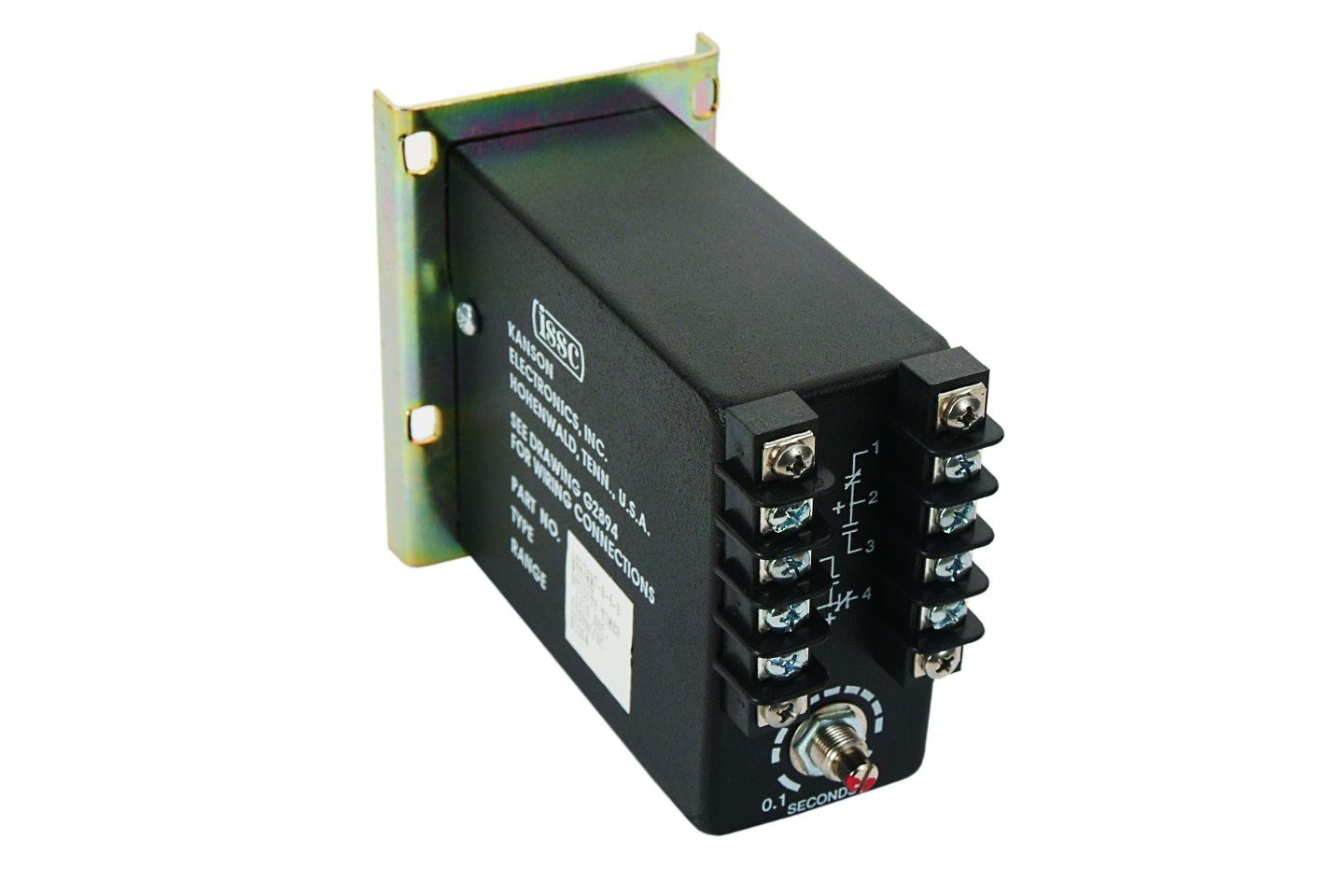

Model 1017-SP7 Base Mount

Input

Voltage: 24V AC/DC, 48V AC/DC, 120VAC/125VDC, 240VAC/250VDC

Frequency: 50/60 Hz or DC

Tolerance (voltage): ±15% of nominal, ± 10% for 24V

Power Consumption: 16 W Maximum

Transient Protection: MOV

Output

Type: Electromechanical relay

Rating: 3A @150 VDC Max, 10A @ 240 VAC 80% PF Max

Timing Function: On Delay

Repeat Accuracy: ± 1% of setting

Reset Time: 50 msec minimum

Time Range: 1.5 to 120 cycles in 4 ranges or 0.5 to 300 sec in 4 ranges

Range Tolerance: ≤ 10% at max., ≤ 0% at min.

Physical

Operating Temp: 40° to 65° C (40° to 150° F)

Timing Variation vs. Temp: ± 5% maximum

Mounting: Base Mount

Termination: Terminal blocks on face of timer

Housing: Metal
