Model 1012 Plug-in
- On Delay
- Off Delay
- Pulsed Interval
- Maintained Interval

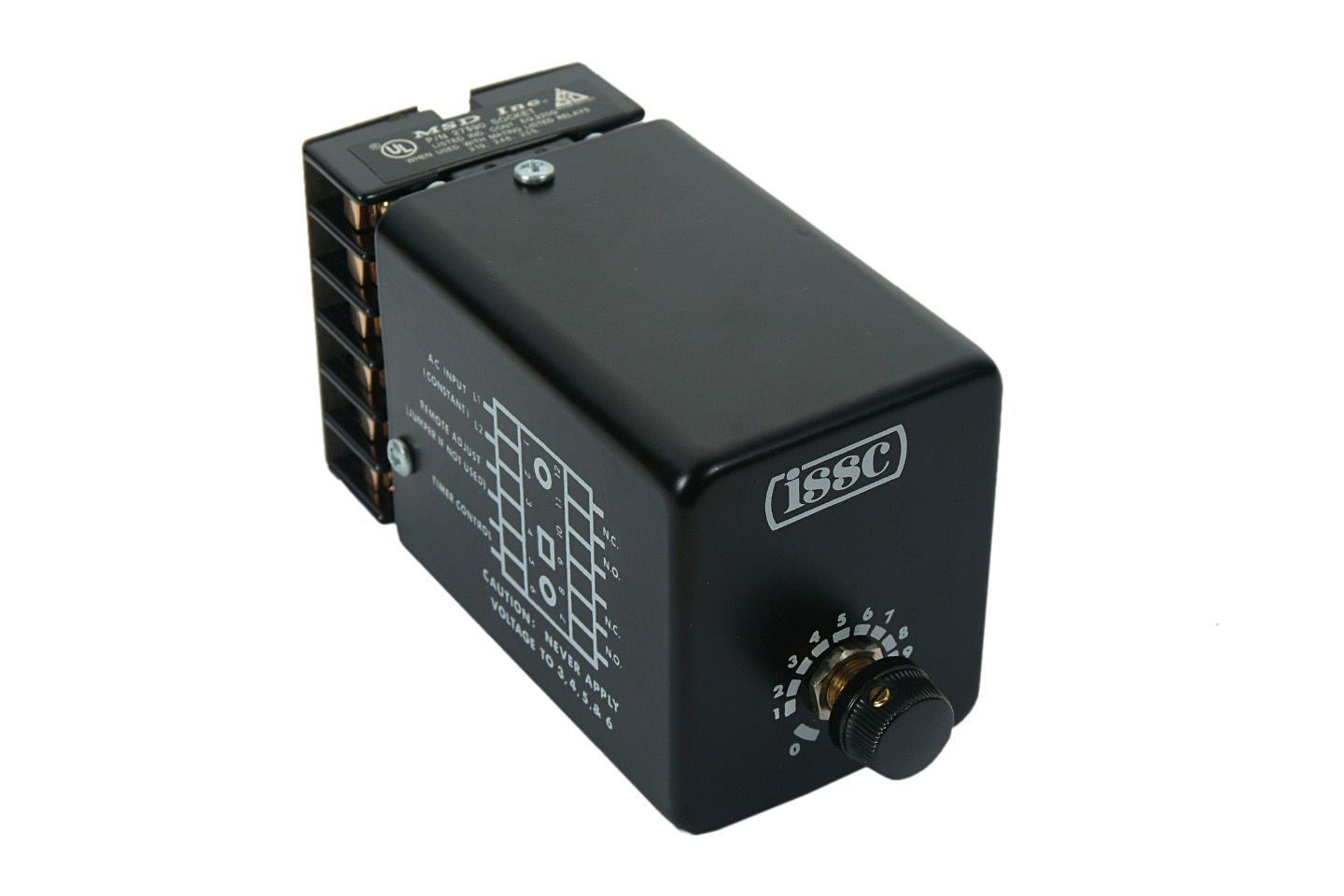

The 1012 delay timer is easy to install or replace, keeping downtime to a minimum. The 12 pin base allows both DPDT output and remote adjust connections.
Specifications
Input
Voltage: 120VAC or 24VAC
Frequency: 50/60 Hz
Tolerance (voltage): ± 15% of nominal
Power Consumption: 10 VA maximum
Transient Protection: Isolation transformer (120 VAC only)
Output
Type: Electromechanical relay
Rating: 10A - 1/6HP at 120VAC, 1/3HP at 24VAC
Timing Function: On delay, Off delay, Pulsed interval, Maintained interval
Repeat Accuracy: ± 1% of setting
Reset Time: 50 msec minimum
Indication: Optional LED - ON when timing
Timing Ramp: 0.06 sec minimum time - 100k ohm/sec, .5 sec minimum time - 10K ohm/sec
Time Range: 0.06 to 500 secs in 12 ranges
Range Tolerance: ≤ 10% at max., ≤ 0% at min.
Control: Isolated contact closure
Control Terminals: 5/6/2014
Voltage Present at Control Terminals: 24 VDC minimum, 40 VDC maximum
Physical
Operating Temp: 0° to 50° C (32° to 120° F)
Timing Variation vs. Temp: ± 5% maximum
Mounting: Plug-in
Termination: 12 pin socket
Housing: Metal
Wiring
Dimensions
Ordering Data
