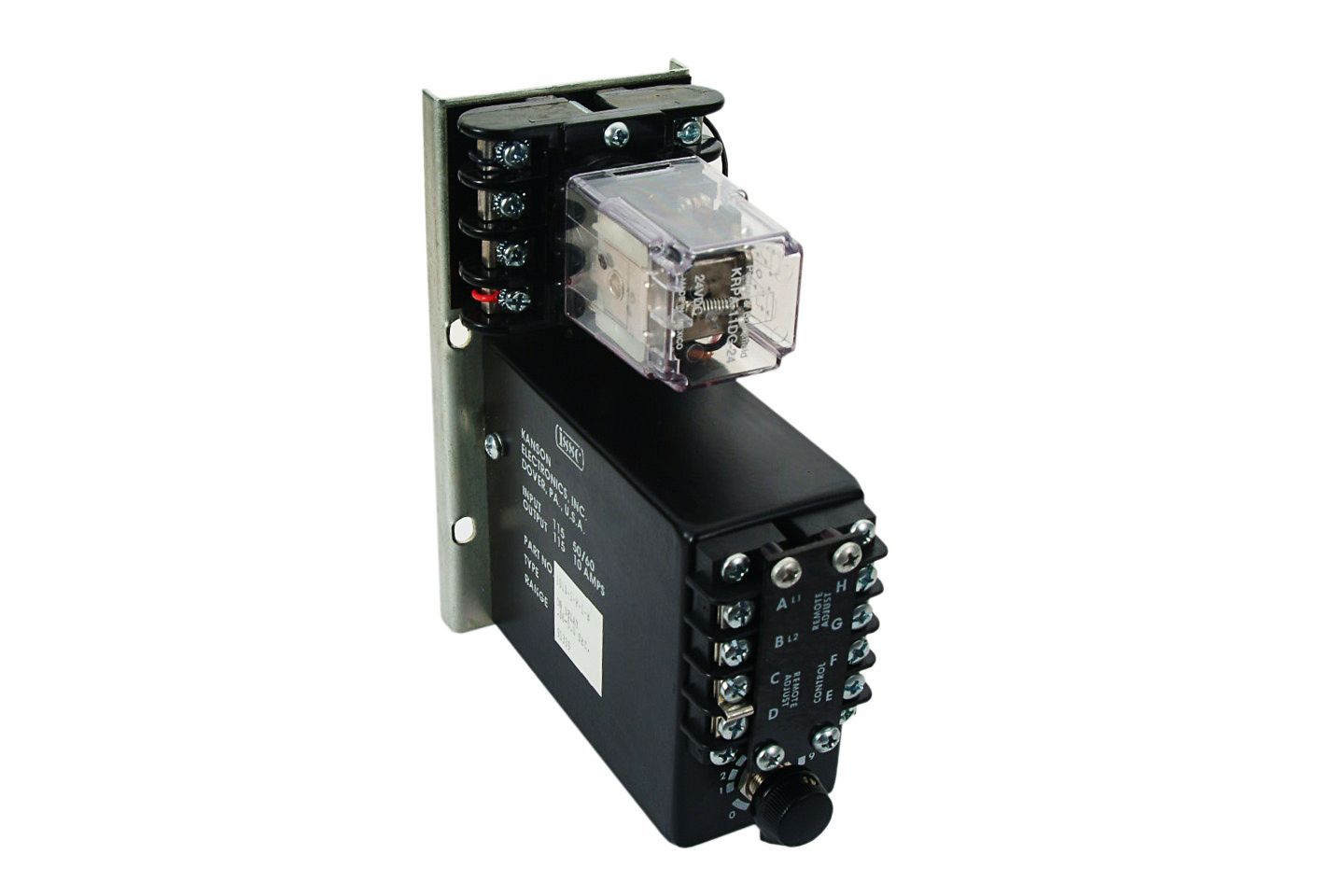

Model 1010 Base Mount

Input

Voltage: 120VAC, 230VAC

Frequency: 50/60 Hz

Tolerance (voltage): ± 15% of nominal

Power Consumption: 10 VA maximum

Transient Protection: Isolation transformer

Output

Type: Electromechanical relay (solid state available as accessory)

Rating: 10A @ 240VAC maximum

Timing Function: On delay, Off delay, Pulsed inteval, Maintained interval

Repeat Accuracy: ± 1% of setting

Reset Time: 50 msec minimum

Indication: Optional LED - ON when timing (off delay - LED ON when output)energized)

Timing Ramp: 0.06 sec minimum time - 100kΩ/sec, 0.5 sec minimum time - 10k_/sec

Time Range: 0.06 to 500 secs in 12 ranges

Range Tolerance: ≤ 10% at max., ≤ 0% at min.

Control: Isolated contact closure

Control Terminals: E-F

Voltage Present at Control Terminals: 24 VDC min., 40VDC max.

Physical

Operating Temp: 0° to 50° C (32° to 120° F)

Timing Variation vs. Temp: ± 5% maximum

Mounting: Base Mount

Termination: Terminal blocks on face of timer

Housing: Metal
